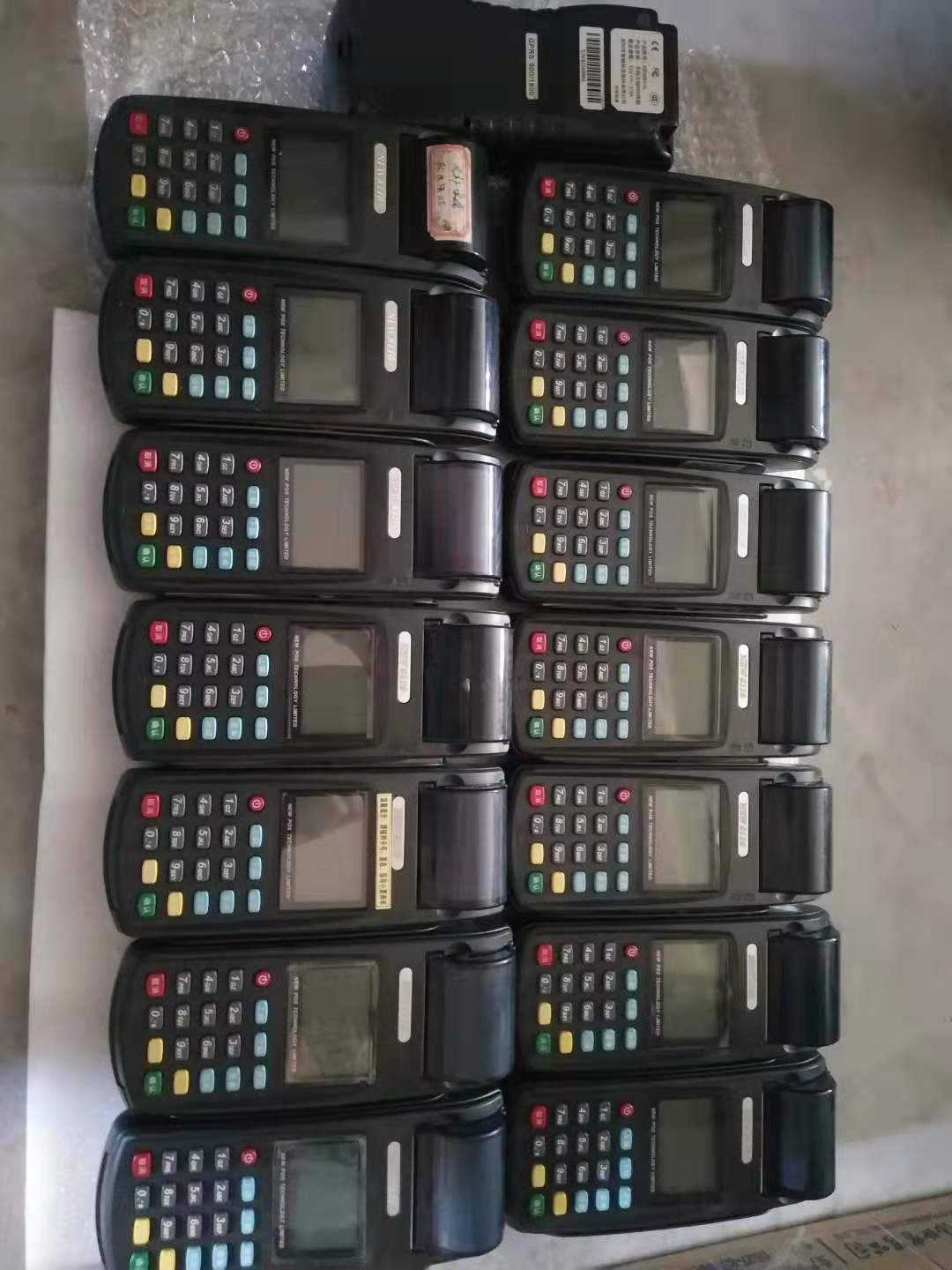

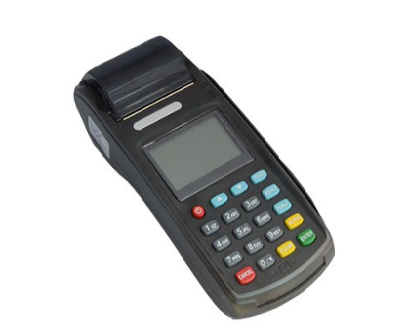

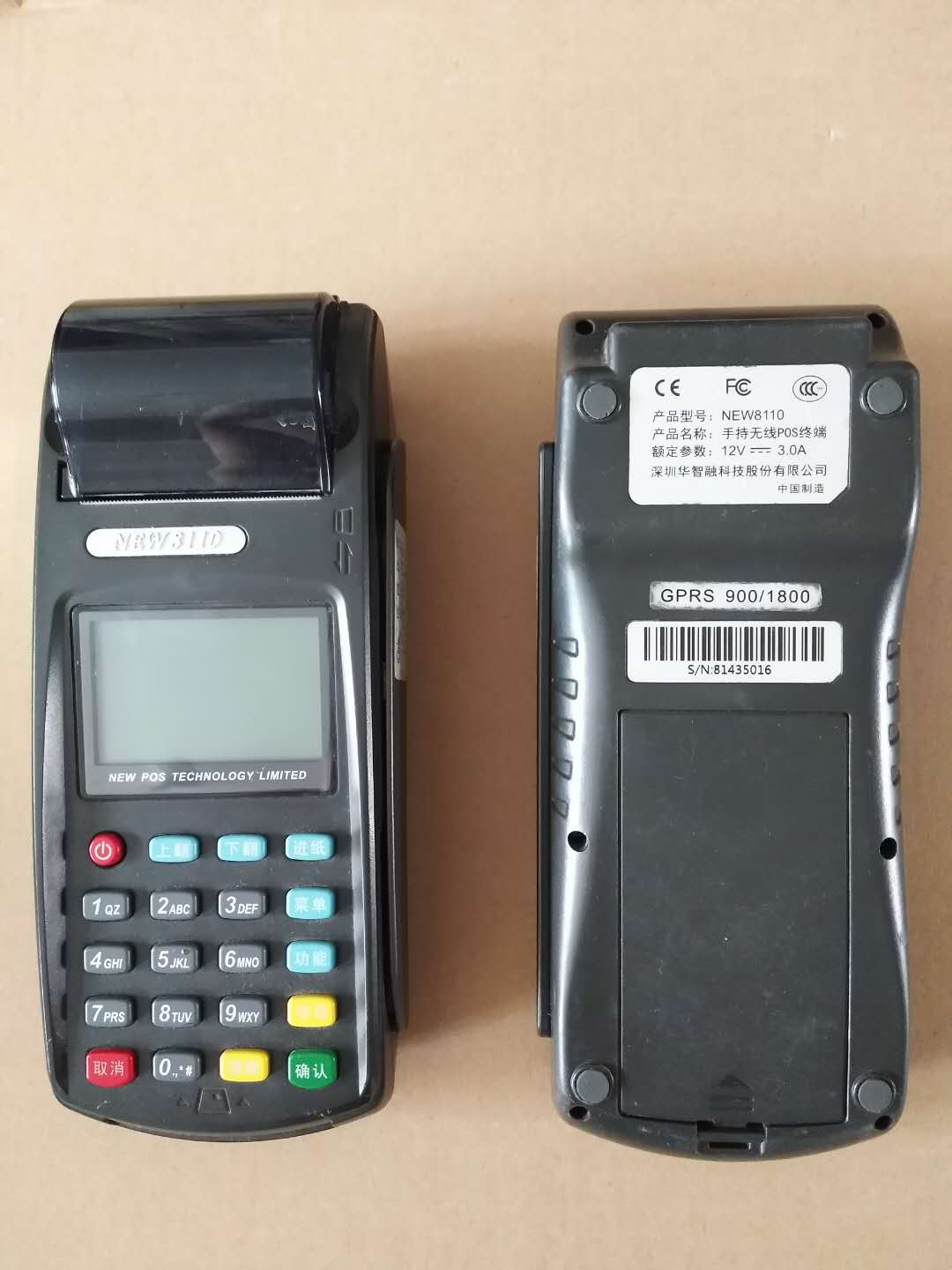

Used POS NEW8110

CPU：

32-bit secure CPU, ARM9, 180MHz

Model：

NEW8110

Brand：

NEWPOS

Memory：

8MB FLASH, 16MB SDRAM

Display：

128×64 pixel LCD, white LED backlight and specific icon

MSR Reader：

Track 1 / 2 / 3, bi-directional, ISO7812

EMV Card Reader：

1 user card (EMV4.2), supports SLE4442 / SLE4428 memory card

Contactless Card Reader：

ISO / IEC14443,Type A / B, Mifare® Compliant Maximum effective distance up to 4cm 4 RF Indicators: Red Yellow, Blue, Green

SAM Slot：

2 (optional 4) PSAM slots, compliant with ISO7816; Supports PPS protocol, up to 300kbps

Communication：

DIAL/ETH

Printer：

Thermal graphic printer, Speed: 18 lps Standard paper roll: 58mm (2.25 in.)

Power Supply：

Input: 100 ~ 240VAC, 50Hz/60Hz; Output: 12VDC, 3A

Peripheral Port：

2 RS-232, Output: 5VDC 500mA

Certificate：

PCI PTS 3.x MasterCard PayPass Visa payWave EMV PBOC

Price：

$15.00

Dimension：

215*90*62mm

Weight：

566g

Detail

Key Features:

Elegant and slim design, convenient swiping card vertically
Powerful secure ARM9 (180MHz), 32-bit, outstanding performance in mass data and EMV transactions
PCI-PED V1.3, online & offline certified, integrated PED
24MB memory, supports downloading multiple applications
Large capacity battery, over 400 transactions per charge
Integrated wireless communication MODEM, GPRS/CDMA/WIFI/GPRS&Wi-Fi
Integrated PSTN MODEM, supports PSTN MODEM coexists with wireless
Supports full SSLv2/3 TLSv1
2 RS232
Output 5V@500mA to external device
Supports FTP remote download
High speed thermal printer, up to 28 lines/sec, easy load style, adjustable print gray, supports dual-layer paper, black label detection and smart paper positioning

PCI-PTS V3.x,EMV4.3(Level 1&2), PBOC3.0, CCC, FCC, CE and RoHS approved
